Z31 Wheel Specifications[edit]

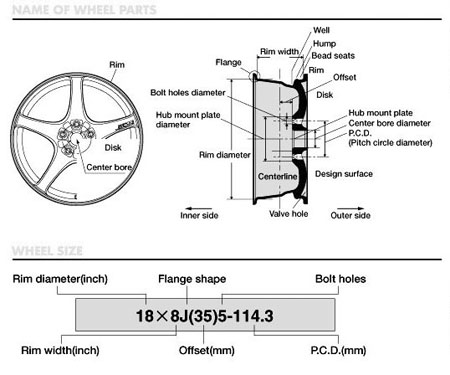

Basic Wheel Information:
Stock Wheel Specifications[edit]

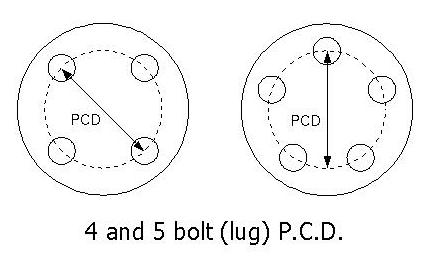

- 4 Lug bolt pattern: 4x4.5(4x114.3)
- 5 Lug bolt pattern: 5x4.5(5x114.3)
- Studs are m12x1.25
- Centerbore is 66.1mm
Stock Tire Size[edit]
- 15x6.5 wheels had 215/60R15
- 16x7.0 wheels had 225/50R16

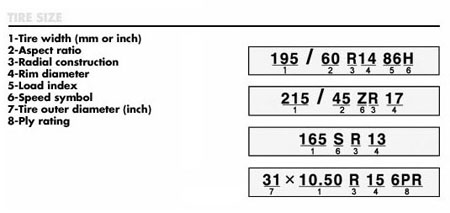

How to read your tire size[edit]
Wheel Chart:[edit]
The 300zx from 1984-1989 came with 12 different wheel configurations. The following chart details what models got what wheels.

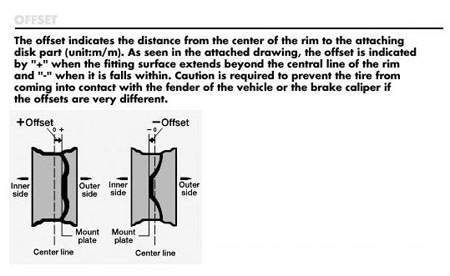

| Year and Model | Part Number | Wheel Specifications | Lug Nut Type | Back space offset | Image |
| 1984 Non Turbo | 40300-04P25 | 6.5x15" 4 lug | Shank style 12mmx1.25 | +30mm |
|
| 1984 Turbo | 40300-04P27 | 6.5x15" 5 lug | Shank style 12mmx1.25 | +30mm |
|
| 1984 50th AE Turbo | 40300-05P25 | 7.0x16" | Acorn 12mmx1.25 | +20mm |
|
| 1985 Non Turbo | 40300-04P25 | 6.5x15" 4 lug | Shank style 12mmx1.25 | +30mm |
|
| 1985 Turbo | 40300-04P27 | 6.5x15" 5 lug | Shank style 12mmx1.25 | +30mm |
|
| 1986 Non Turbo | 40300-19P25 | 6.5x15" | Acorn 12mmx1.25 | +10mm |
|
| 1986 Turbo | 40300-19P27 | 7.0X16" | Acorn 12mmx1.25 | +20mm |
|
| 1987 Non Turbo | 40300-21P85 | 6.5X15" | Acorn 12mmx1.25 | +20mm |
|
| 1987 Turbo | 40300-21P26 | 7.0X16" | Acorn 12mmx1.25 | +30mm |
|
| 1988 Non Turbo | 40300-21P27 | 6.5X15" | Acorn 12mmx1.25 | +20mm |
|
| 1988 Turbo | 40300-21P87 | 7.0X16" | Acorn 12mmx1.25 | +30mm |
|
| 1988 Turbo SS | 40300-26P25 | 7.0X16" | Acorn 12mmx1.25 | +30mm |
|
| 1989 Non Turbo | 40300-21P27 | 6.5X15" | Acorn 12mmx1.25 | +20mm |
|
| 1989 Turbo | 40300-21P87 | 7.0X16" | Acorn 12mmx1.25 | +30mm |
|
| 1984-1985 Turbo Euro Spec | 40300-07P00 | 7.0x16" | Shank style 12mmx1.25 | +30mm |
|
| 1984-1989 SF Steel | 40300-01P00 | 5.5X14" | Acorn 12mmx1.25 | +30mm | N/A |
| 1987-1989 Winter Steel | 40300-21P10 | 6X15" 30mm offset | Acorn 12mmx1.25 | +30mm | N/A |
| 1984-1989 Steel Wheel Cover | 40315-01P00 | Wheel Cover Only | N/A |
|
Sources used on this page:
- Nissan Z31 Parts Fiche Sections (4G12, 4K12, 4M12, 4N12)
- 1984-1988 Nissan Factory Service Manual
